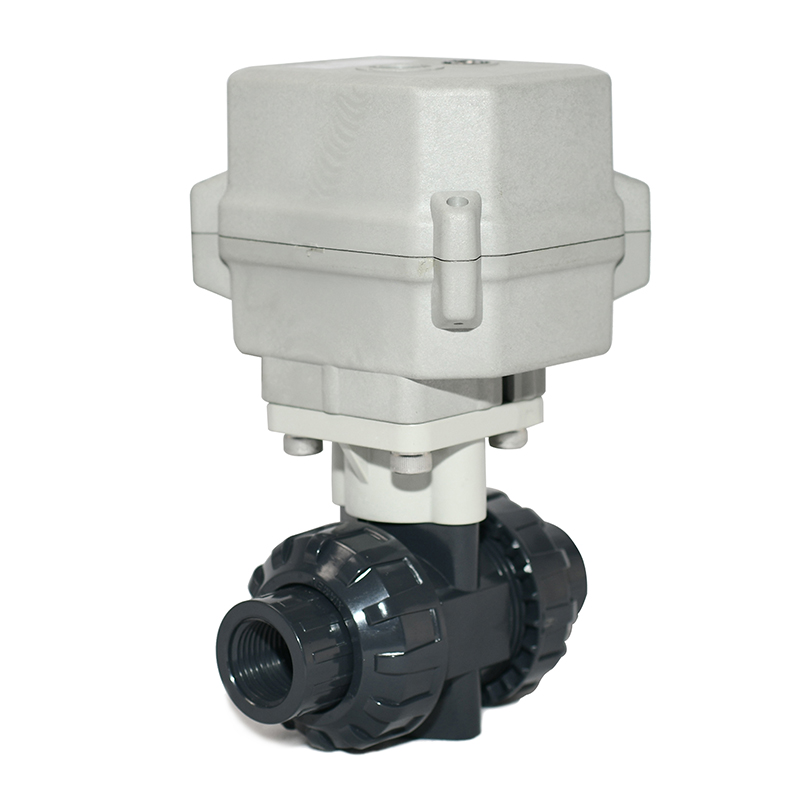

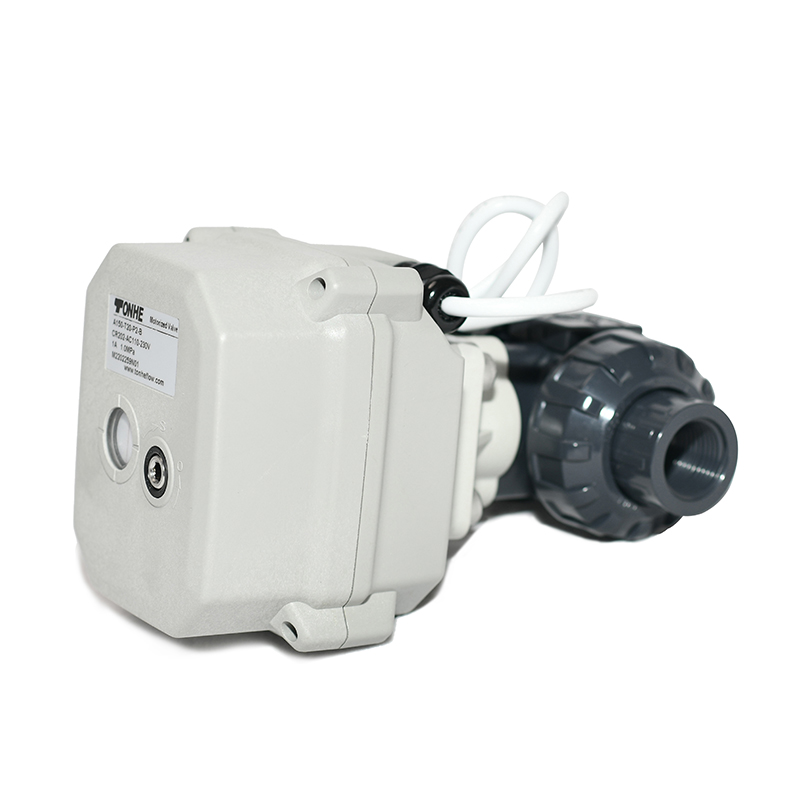

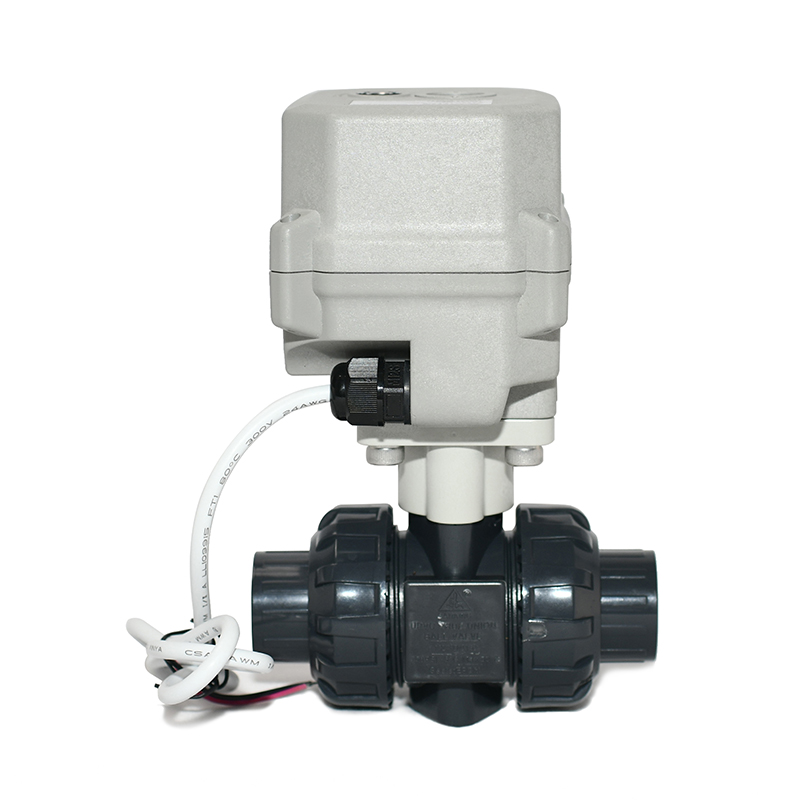

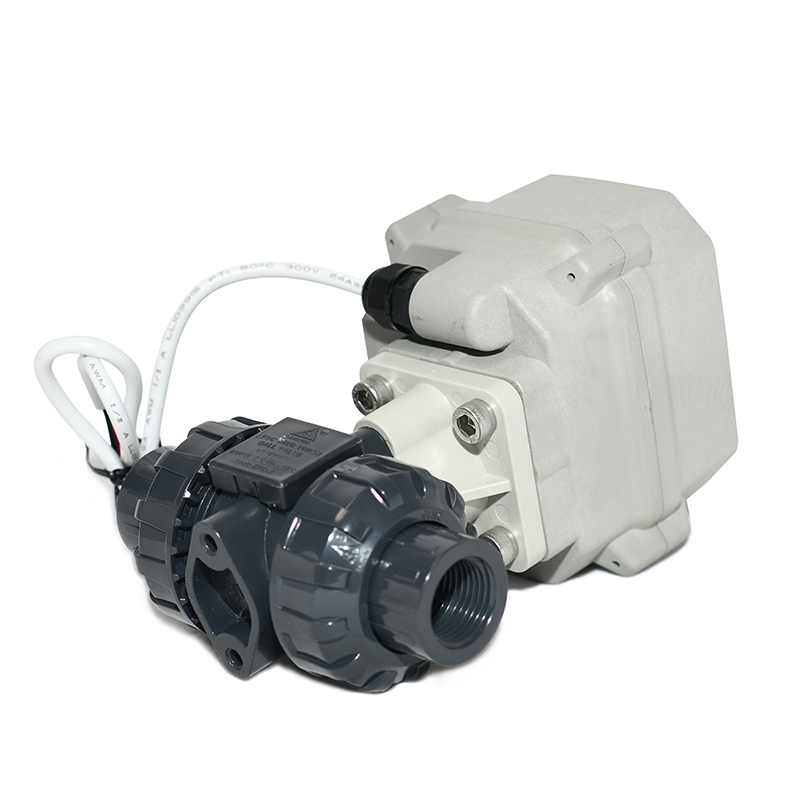

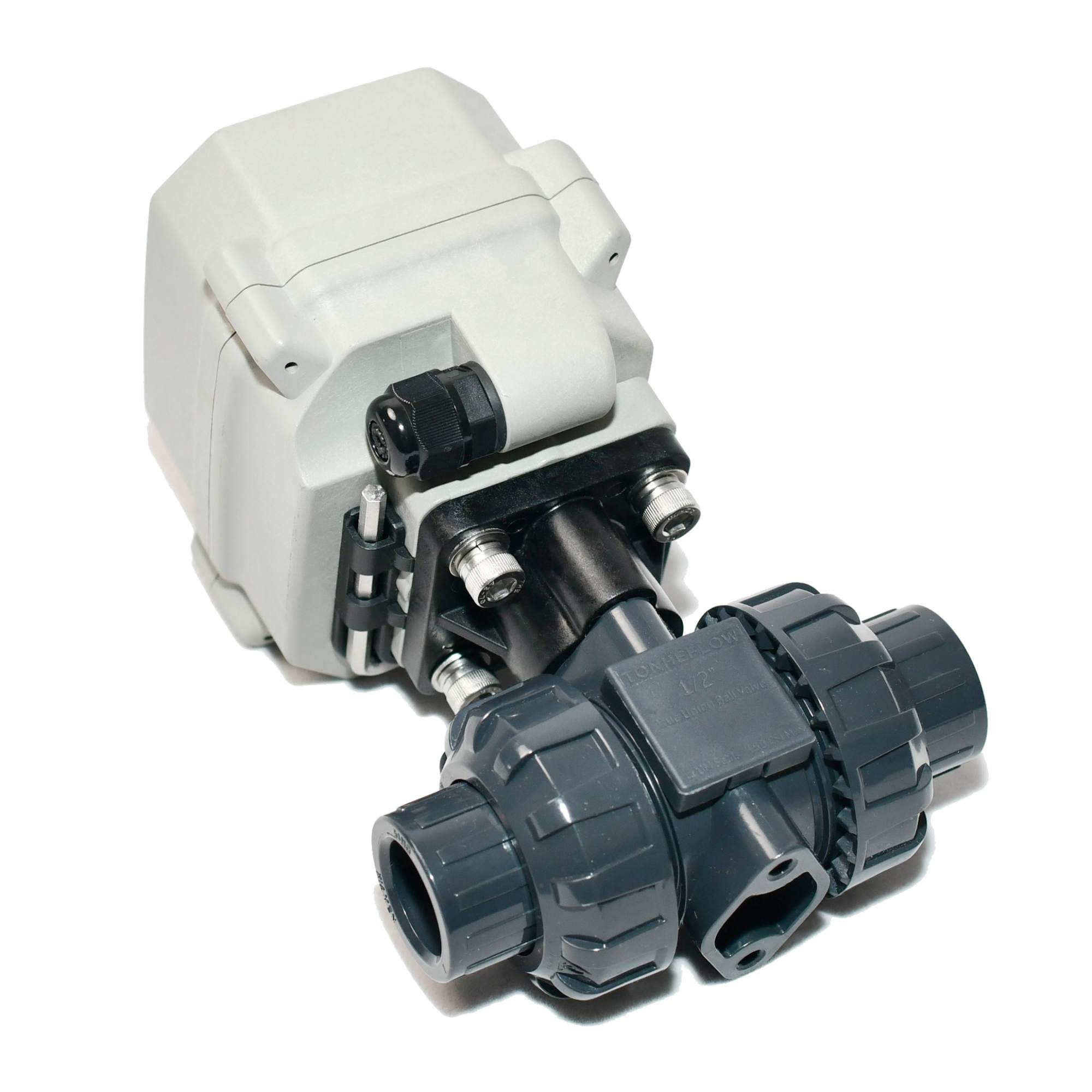

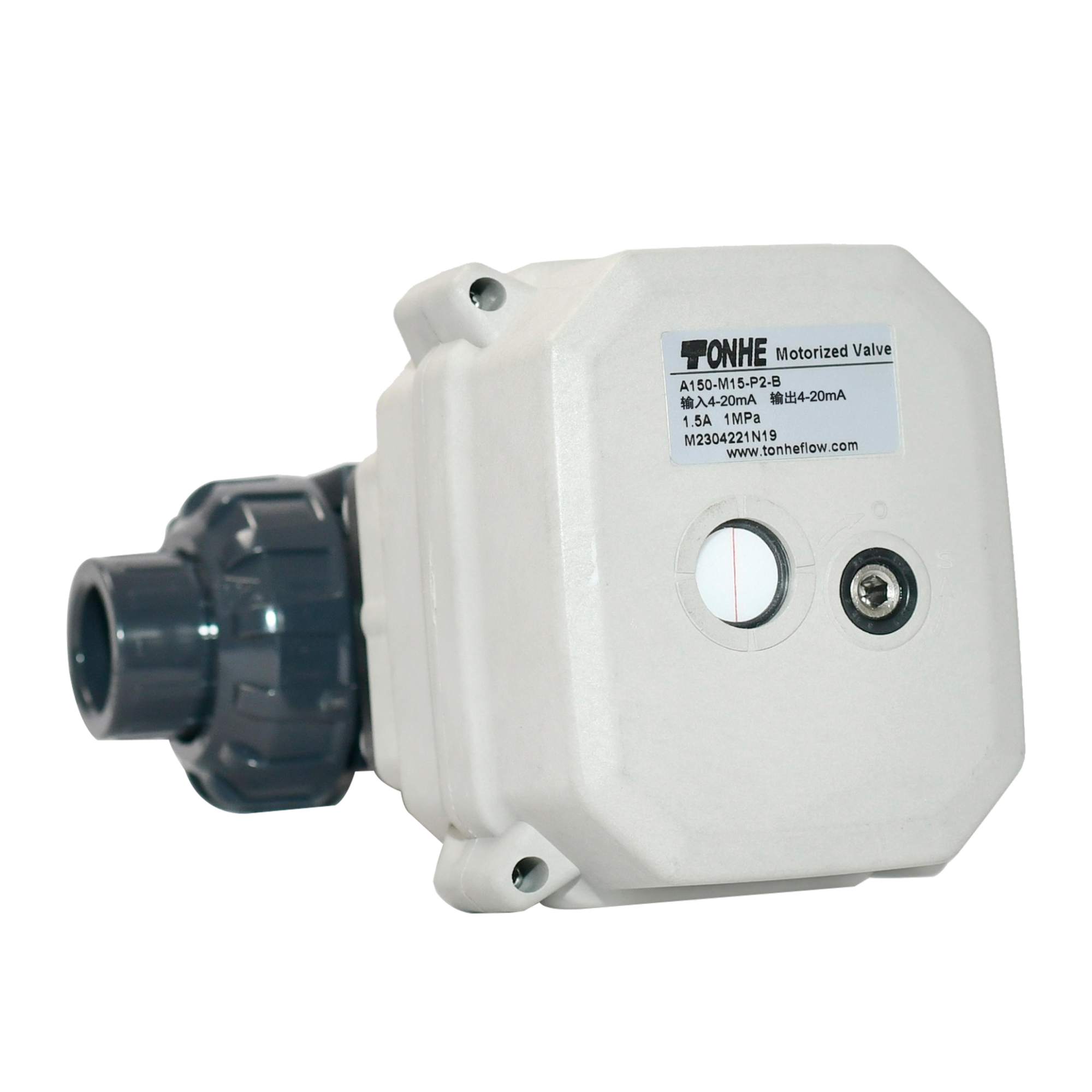

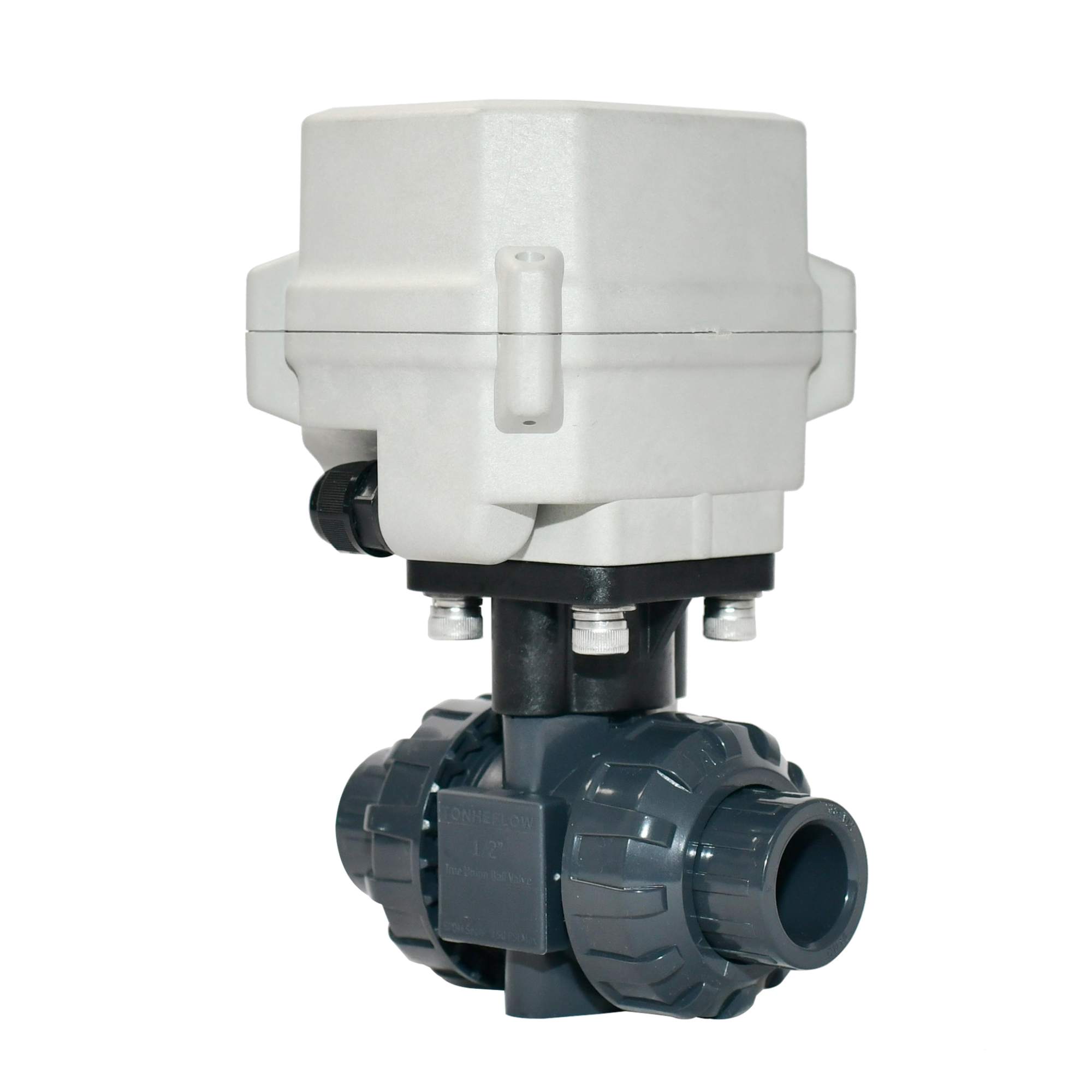

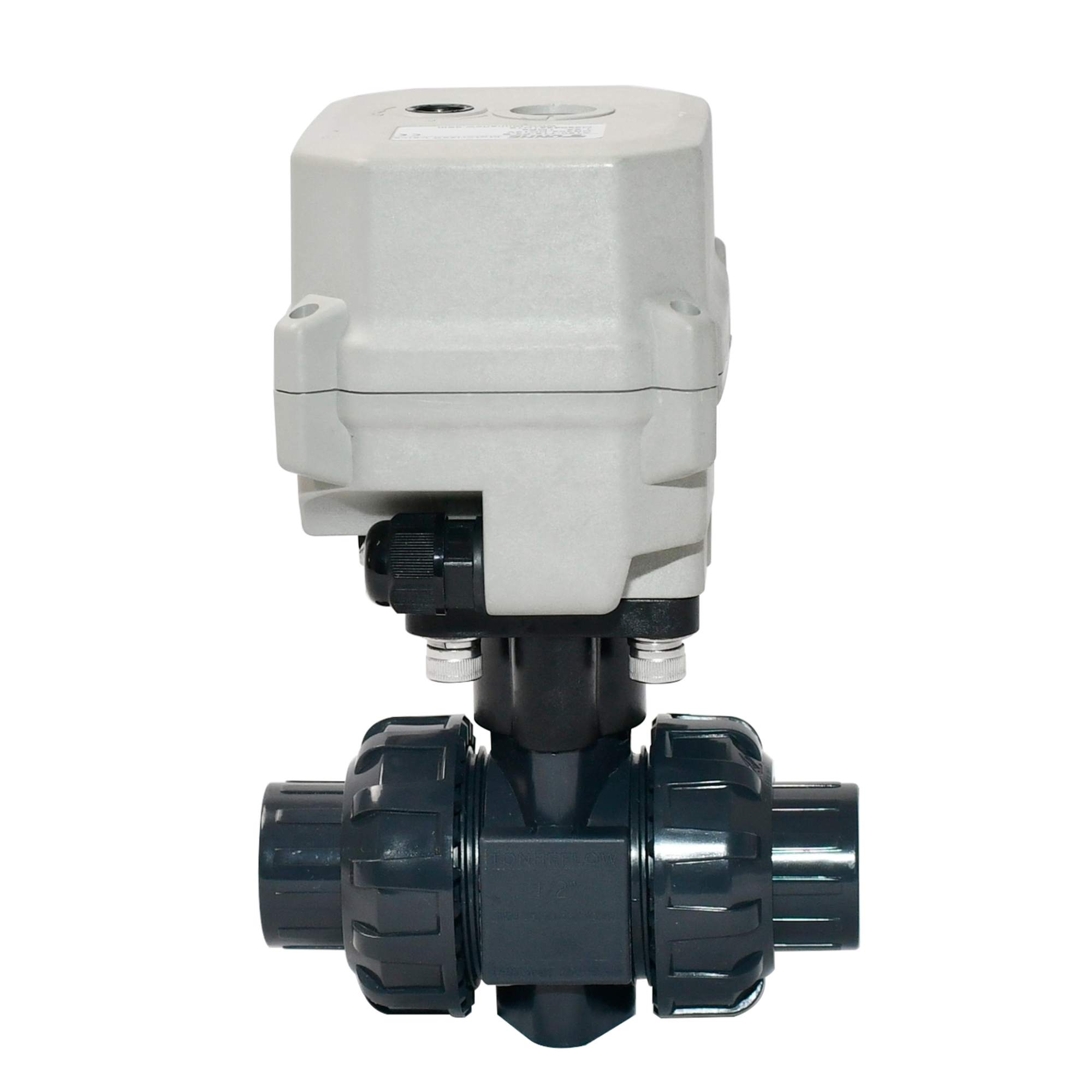

Switch Type -A150 Series 2 Way 1/2 Inches Plastic 4-20mA Electric Modulating Control Ball Valve With Manual Override
1. Analog Iinput Signal:4-20mA 、0-5V 、0-10V，Output Signal ：4-20mA
2. Beautiful appearance, compact structure, high precision, large output torque, service life is not less than 70,000 times.
3. The actuator and valve can be assembled from multiple angles, which is convenient for users to allocate space.
4. Ball valve adopts floating soft seal structure, no drip leakage, suitable for heavy dirt and long-term no action occasions.
5. Protection grade IP67, can be used in relatively humid environment.
Online Service
1. RD(red cable) connects DC9-24V positive pole
2. BK(black cable) connects DC9 ~ 24V negative pole
3. GR(green cable) connects position input /control current +/ control voltage 2-10V
4. WT(white cable) connects common signal
5. YW(yellow cable) connects position feedback positive,output 2-10V signal
1. RD(red cable) connects DC9-24V positive pole
2. BK(black cable) connects DC9 ~ 24V-negative pole
3. GR(green cable) connects position input /control current +/ control voltage 1-5V
4. WT(white cable) connects common signal
5. YW(yellow cable) connects position feedback positive,output 4-20mA signal
*When output signal is 4-20mA, the biggest input voltage of load resistance is (v-2)/0.02, e.x. power is 15V, (15-2)/0.02=650Ω, suggest to use 300Ω
1. RD(red wire) connects to DC9-24V positive pole;
2. BK(black wire) connects to DC9-24V negative pole;
3. GR(green wire) connects to analogy(4-20mA) signal’s positive pole;
4. WT(white wire) connects to negative poles of input analogy signal and output signal
5. YW(yellow wire) connects to position feedback positive pole, output signal 4-20mA is the feedback signal.
* When output signal is 4-20mA, the maximum load resistance is the input power voltage (v-2) /0.02, e.g. if the power is 15V, then (15-2)/0.02=650Ω, it is recommended to use a 300Ω load resistor.
