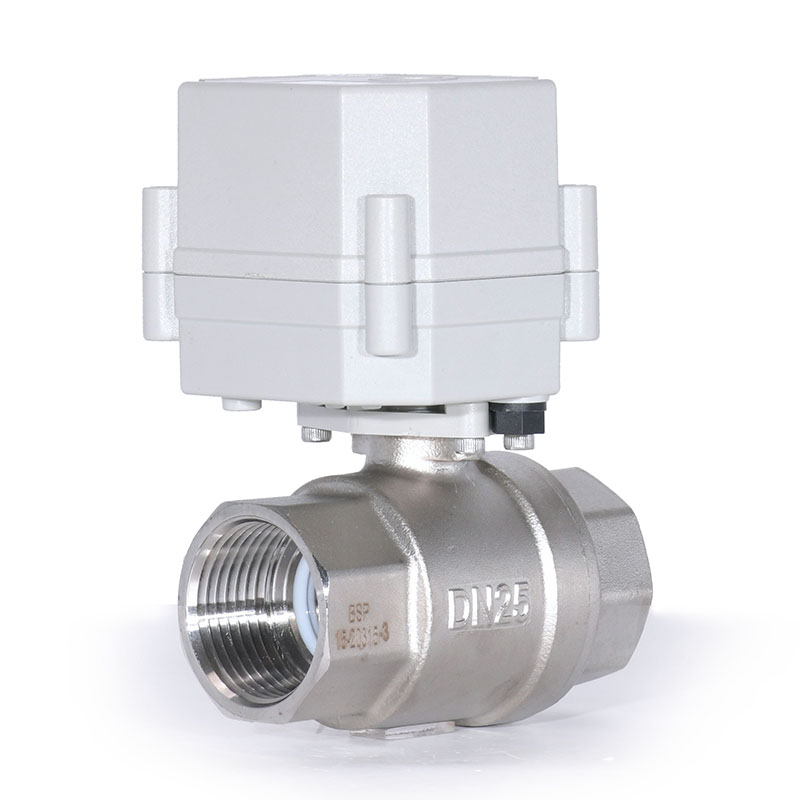

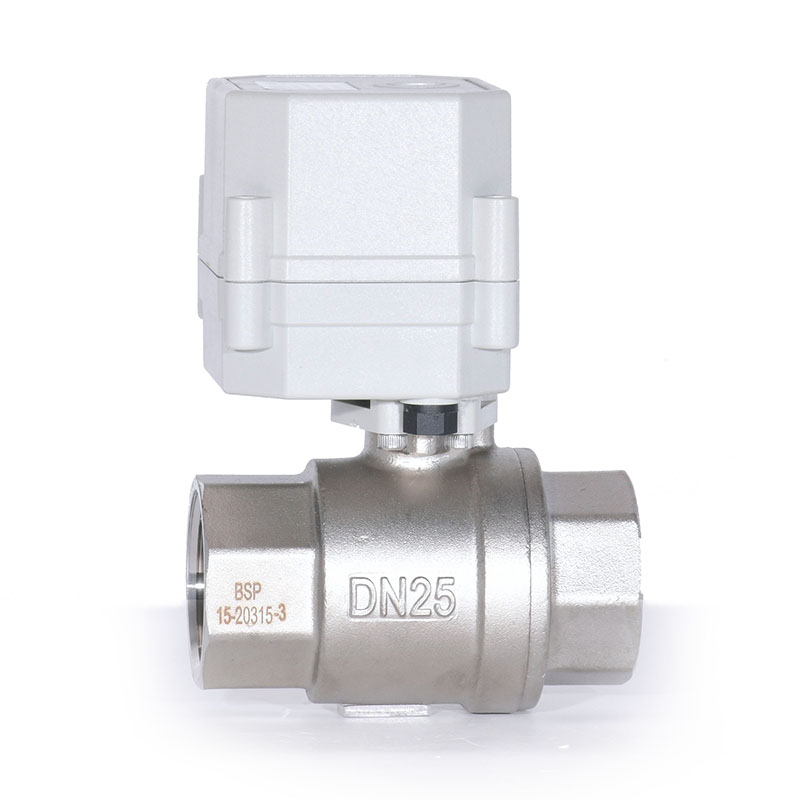

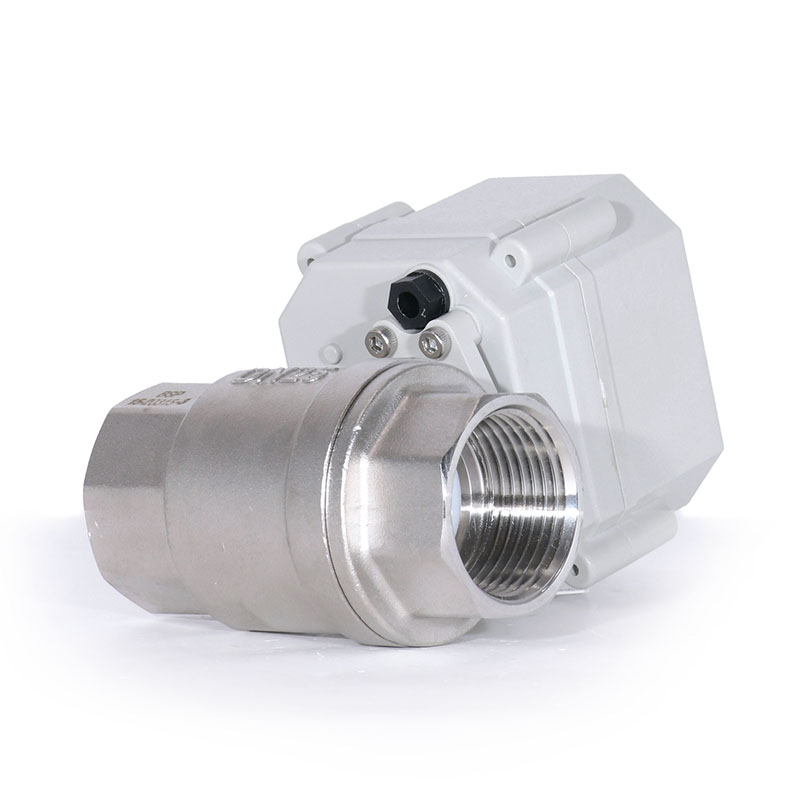

Switch Type - Analog Signal 4-20mA/0-5V/0-10V 1" NPT BSP Ball Valve DN25 Stainless Steel Electric Proportional Valve
1. Analog Iinput Signal:4-20mA 、0-5V 、0-10V、 2-10V，Output Signal：PWM、 4-20mA、 2-10V
2. Beautiful appearance, compact structure, high precision, large output torque, service life is not less than 70,000 times.
3. The actuator and valve can be assembled from multiple angles, which is convenient for users to allocate space.
4. Ball valve adopts floating soft seal structure, no drip leakage, suitable for heavy dirt and long-term no action occasions.
5. Protection grade IP67, can be used in relatively humid environment.
Online Service
1.RD(red wire) connects DC9-24V positive pole
2.BK(black wire) connects 0-5V-
3.GR(grenn wire)connects input position/control current+/control voltage+(4-20mA,0-5V and 0-10V) positive pole
4.YW connects erro output,OC output.
5.WT connects positon feedback,OC output PWM signal
1.RD(red wire) connects DC9-24V positive pole
2.BK(black wire) connects 0-10V-
3.GR(grenn wire)connects input position/control current+/control voltage+(4-20mA,0-5V and 0-10V) positive pole
4.YW connects erro output,OC output.
5.WT connects positon feedback,OC output PWM signal
1.RD(red wire) connects DC9-24V positive pole
2.BK(black wire) connects 4-20mA-
3.GR(grenn wire)connects input position/control current+/control voltage+(4-20mA,0-5V and 0-10V) positive pole
4.YW connects erro output,OC output.
5.WT connects positon feedback,OC output PWM signal
1, RD (red line) power +, connected to DC9~24V positive electrode
2, BK (black line) power supply -, connected to DC9~24V negative terminal
3. GR (green line) position input +, control current (0-5V) positive terminal
4. WT (white line) position input -, position feedback negative electrode
5, YW (yellow line) position feedback +, feedback signal is the output current 4-20mA
1, RD (red line) power +, connected to DC9~24V positive electrode
2, BK (black line) power supply -, connected to DC9~24V negative terminal
3. GR (green line) position input +, control current (0-10V) positive terminal
4. WT (white line) position input -, position feedback negative electrode
5, YW (yellow line) position feedback +, feedback signal is the output current 4-20mA
1, RD (red line) power +, connected to DC9~24V positive electrode
2, BK (black line) power supply -, connected to DC9~24V negative terminal
3. GR (green line) position input +, control current (4-20mA) positive terminal
4. WT (white line) position input -, position feedback negative electrode
5, YW (yellow line) position feedback +, feedback signal is the output current 4-20mA
1, RD (red line) power +, connected to DC24V positive terminal
2, BK (black line) power supply -, connect to DC24V negative terminal
3. GR (green line) position input +, control current (2-10V) positive terminal
4. WT (white line) position input -, position feedback negative electrode
5, YW (yellow line) position feedback +, feedback signal is the output current 2-10V
