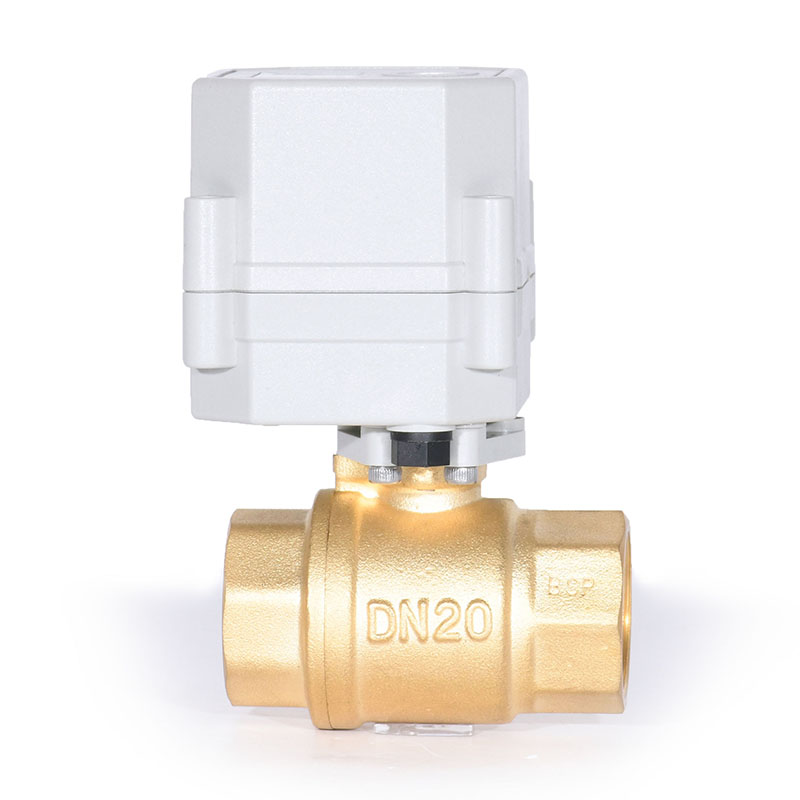

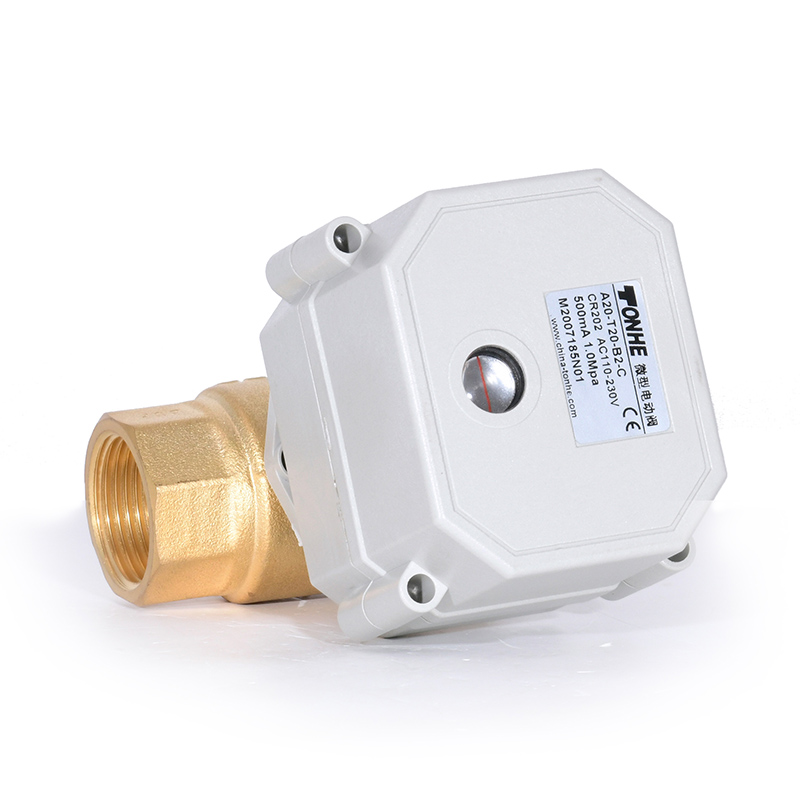

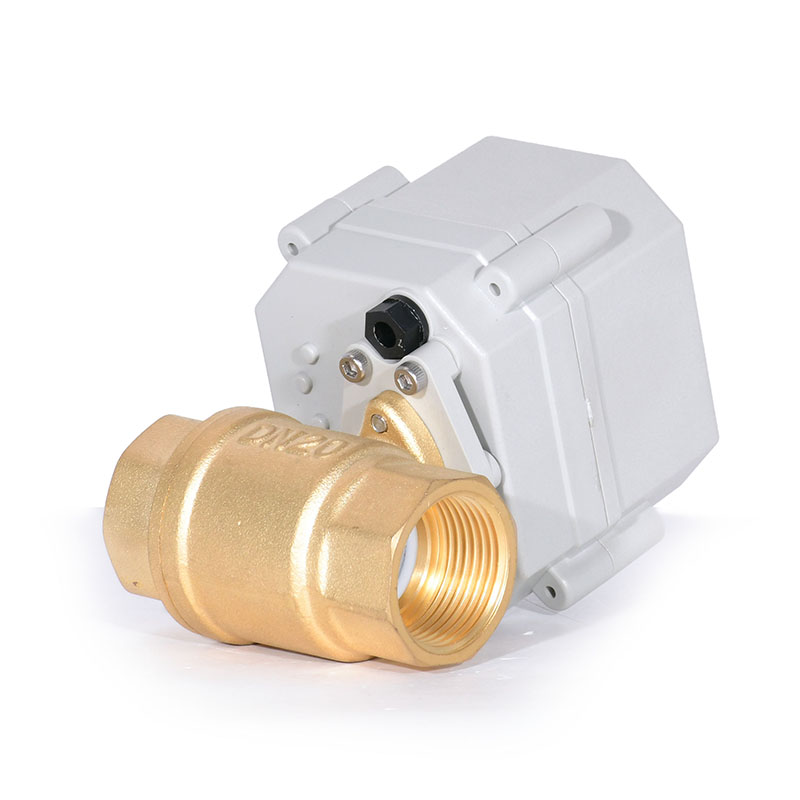

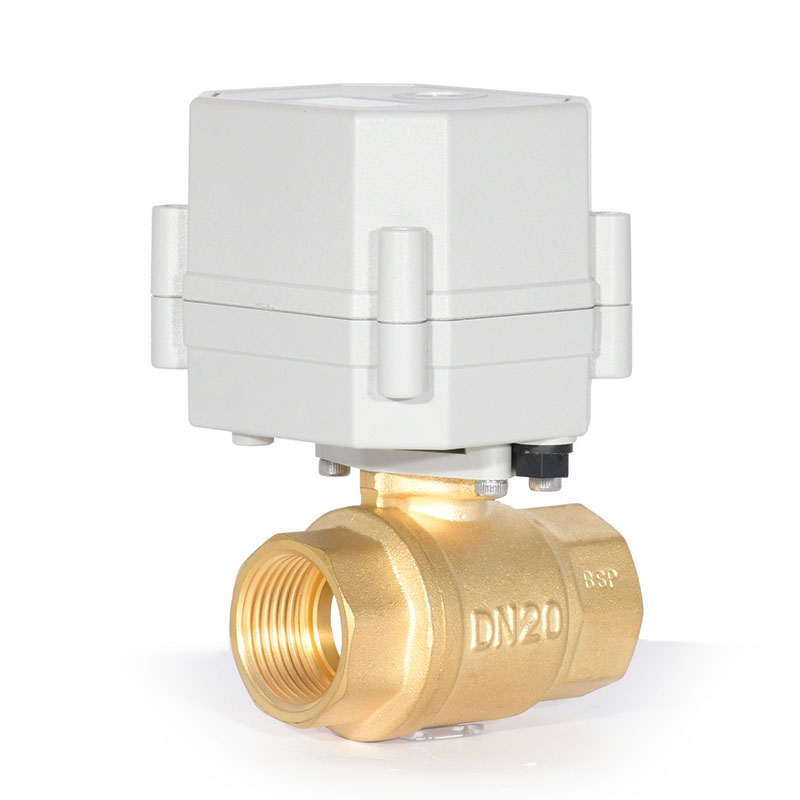

Switch Type - 3/4'' Brass 2Way Brass Electric Water Valve Electric Ball Valve AC110-230V
1. Beautiful appearance, compact structure, high precision, large output torque, service life is not less than 70,000 times.
2. The actuator and valve can be assembled from multiple angles, which is convenient for users to allocate space.
3. Ball valve adopts floating soft seal structure, no drip leakage, suitable for heavy dirt and long-term no action occasions.
4. Protection grade IP67, can be used in relatively humid environment.
Online Service
|
The wiring diagram
1.RD& GR connect with positive, the BK connect with negative. 2.SW CLOSED, the valve OPEN, the actuator automatically power off after in place. 3.SW OPEN, the valve CLOSED, the actuator automatically power off after in place. Suitable Working Voltage: AC/DC9-24V,AC110-230V Exceeding the working voltage is forbidden
1.RD& GR connect with positive, the BK connect with negative. 2.SW CLOSED, the valve OPEN, the actuator automatically power off after in place. 3.SW OPEN, the valve CLOSED, the actuator automatically power off after in place. 4.BL & GY connect with the valve's fully open signal wiring. 5.Yw & WT connect with the valve's fully closed signal wiring. Suitable Working Voltage: AC/DC9-24V.AC110-230V Exceeding the working voltage is forbidden
1.When SW is closed, the valve OPEN. the actuator automatically power off after in place. 2.When SW is open, the valve CLOSED, the actuator automatically power off after in place. Suitable Working Voltage: AC/DC9-24V AC110-230V Exceeding the working voltage is forbidden
1.RD& GR connect with positive, the BK connect with negative. 2.SW CLOSED, the valve OPEN, the actuator automatically power off after in place. 3.SW OPEN, the valve CLOSED, the actuator automatically power off after in place. 4.When external power off, the valve CLOSED, the actuator automatically power off after in place. Suitable Working Voltage: AC/DC9-24V,AC110-230V Exceeding the working voltage is forbidden
1.RD& GR connect with positive, the BK connect with negative. 2.SW CLOSED, the valve OPEN, the actuator automatically power off after in place. 3.SW OPEN, the valve CLOSED, the actuator automatically power off after in place. 4.When extemal power off, the valve OPEN, the actuator automatically power off after in place. Suitable Working Voltage: AC/DC9-24V,AC110-230V Exceeding the working voltage is forbidden
1.When SW is closed, the valve OPEN. the actuator automatically power off after in place. 2.When SW is open, the valve CLOSED, the actuator automatically power off after in place. 3.GR & WT connect with the valve's fully open signal wiring. 4.YW & WT connect with the valve's fully closed signal wiring. Suitable Working Voltage: AC/DC9-24V, AC/DC110V-230V Exceeding the working voltage is forbidden
1.RD & GR connect with positive, the BK connect with negative. 2.SW CLOSED, the valve OPEN, the actuator automatically power off after in place. 3.SW OPEN, the valve CLOSED, the actuator automatically power off after in place. 4. When external power off, the valve closed, the actuator automatically power off after in place. 5.BL & GY connect with the valve's fully open signal wiring. 6.YW & WT connect with the valve's fully closed signal wiring. Suitable Working Voltage: AC/DC9-24V,AC110-230V Exceeding the working voltage is forbidden
1.RD & GR connect with positive, the BK connect with negative. 2.SW CLOSED, the valve OPEN, the actuator automatically power off after in place . 3.SW OPEN, the valve CLOSED, the actuator automatically power off after in place. 4. When external power off, the valve open, the actuator automatically power off after in place. 5.BL & GY connect with the valve's fully open signal wiring. 6.YW & WT connect with the valve's fully closed signal wiring. Suitable Working Voltage: AC/DC9-24V,AC110-230V Exceeding the working voltage is forbidden |
