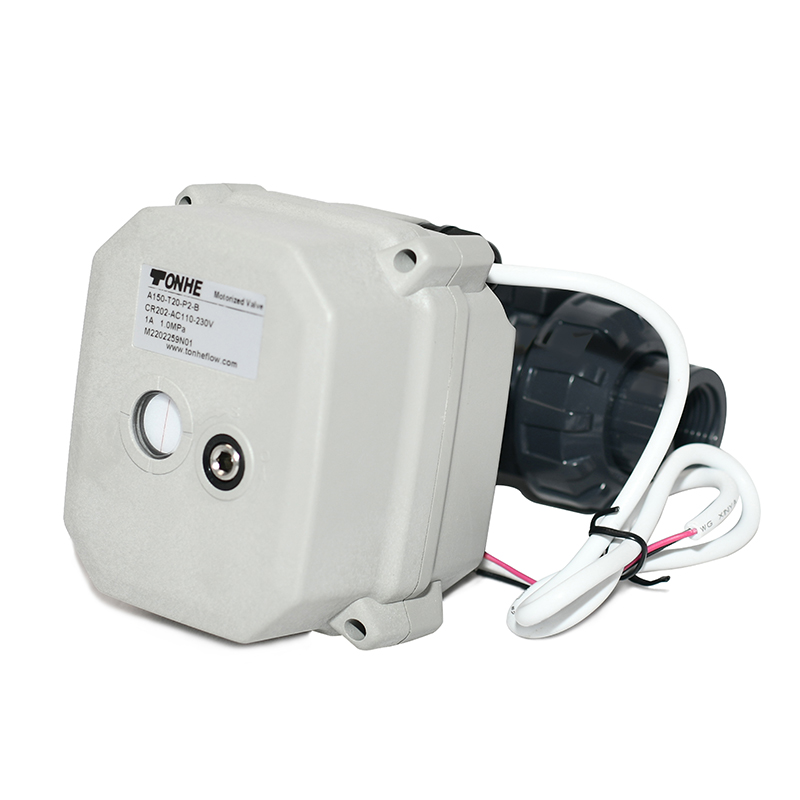

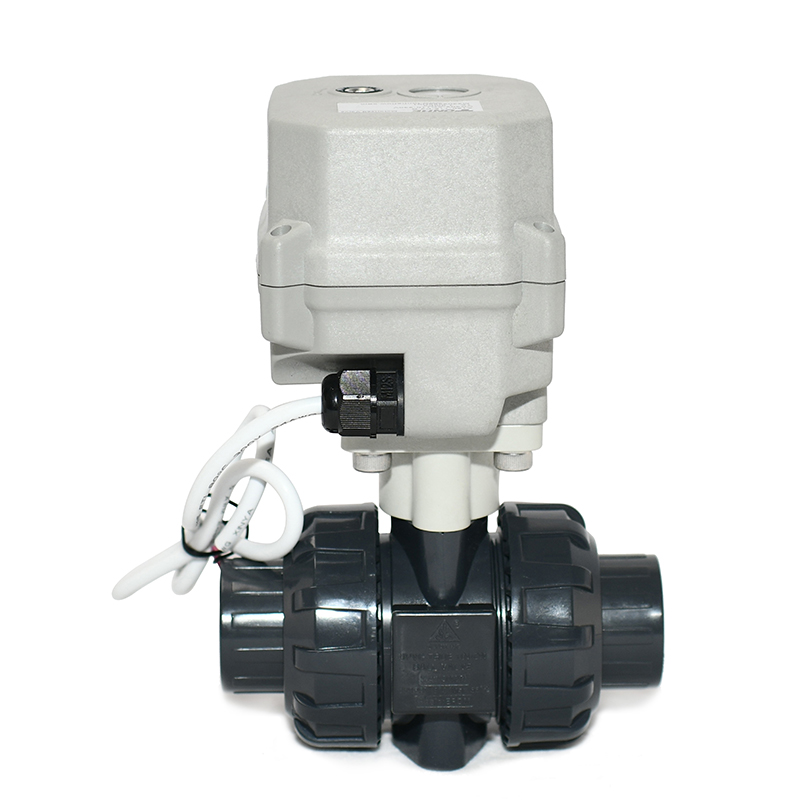

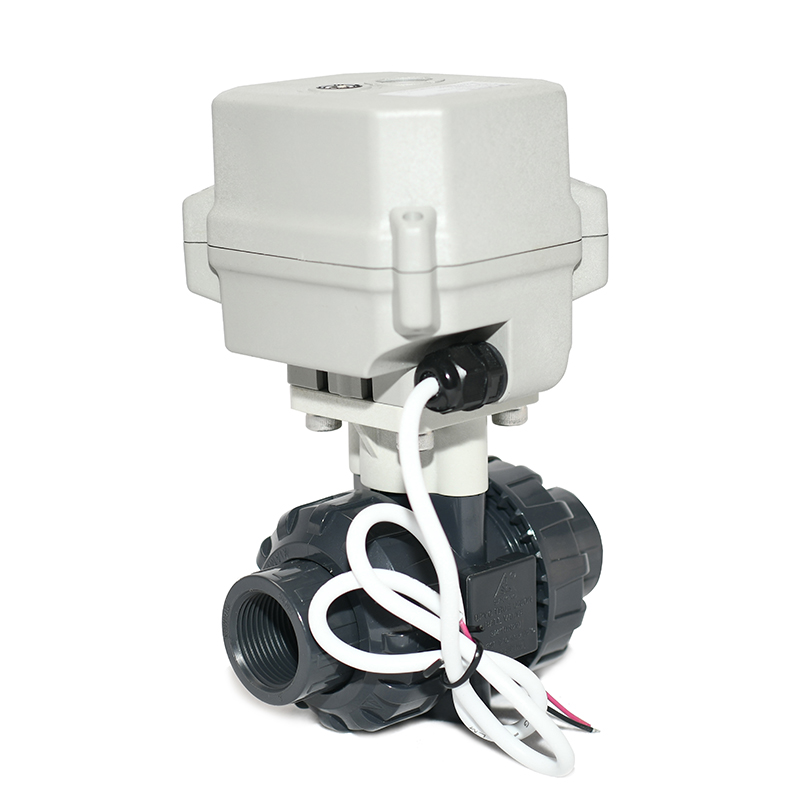

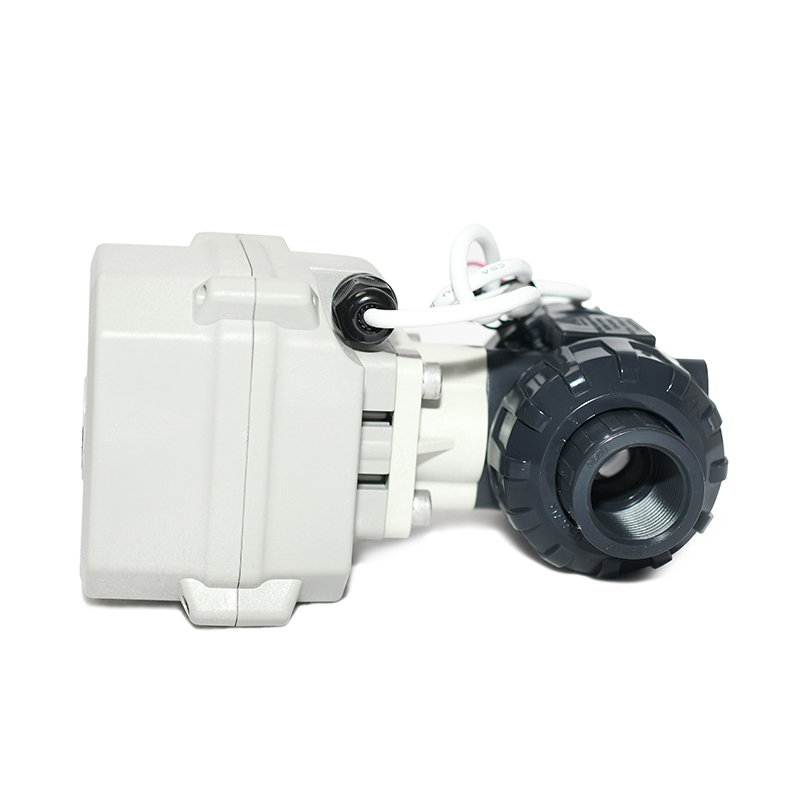

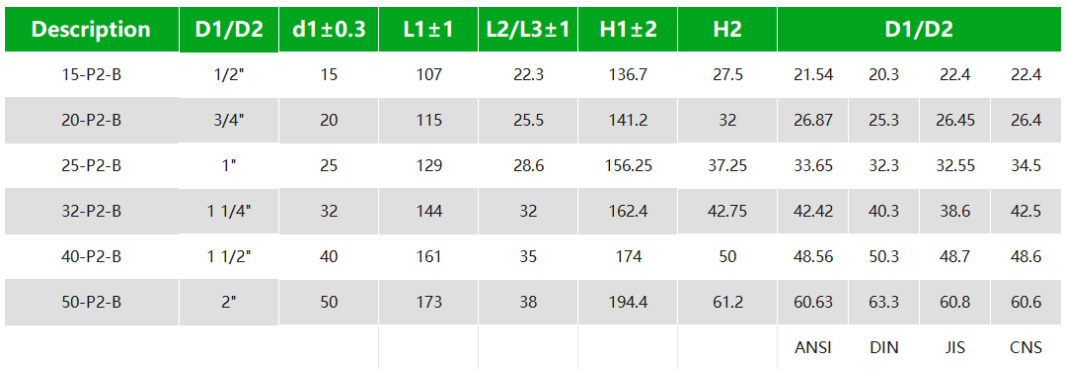

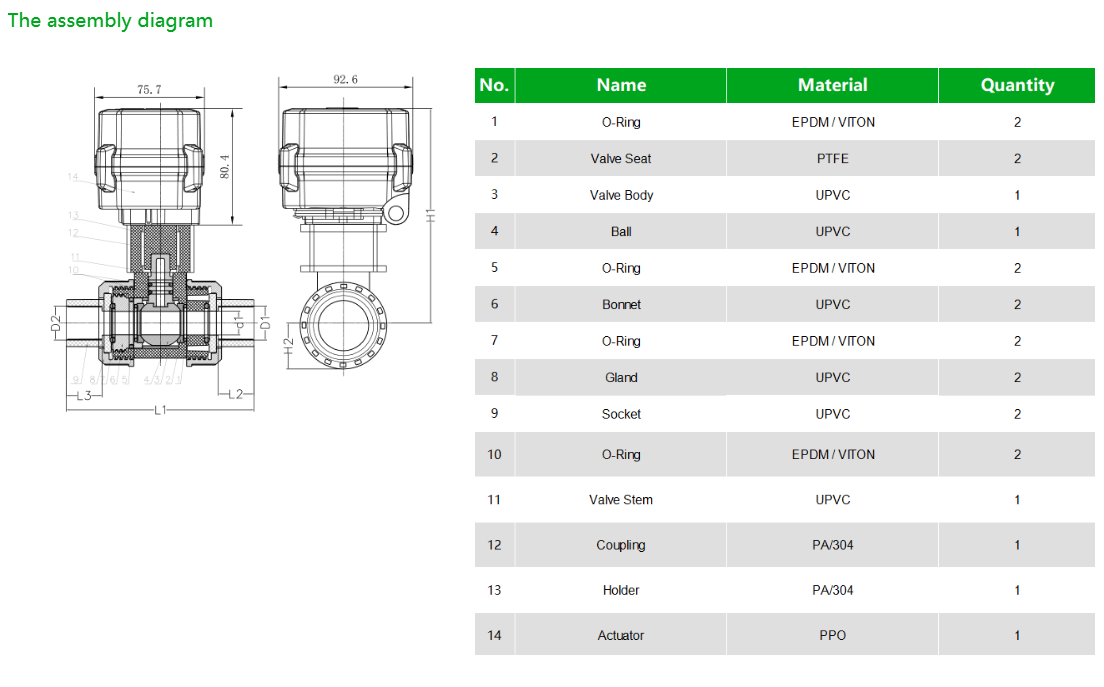

Switch Type -A150 Series 2 Way 3/4 Inches Plastic 4-20mA Electric Modulating Control Ball Valve With Manual Override

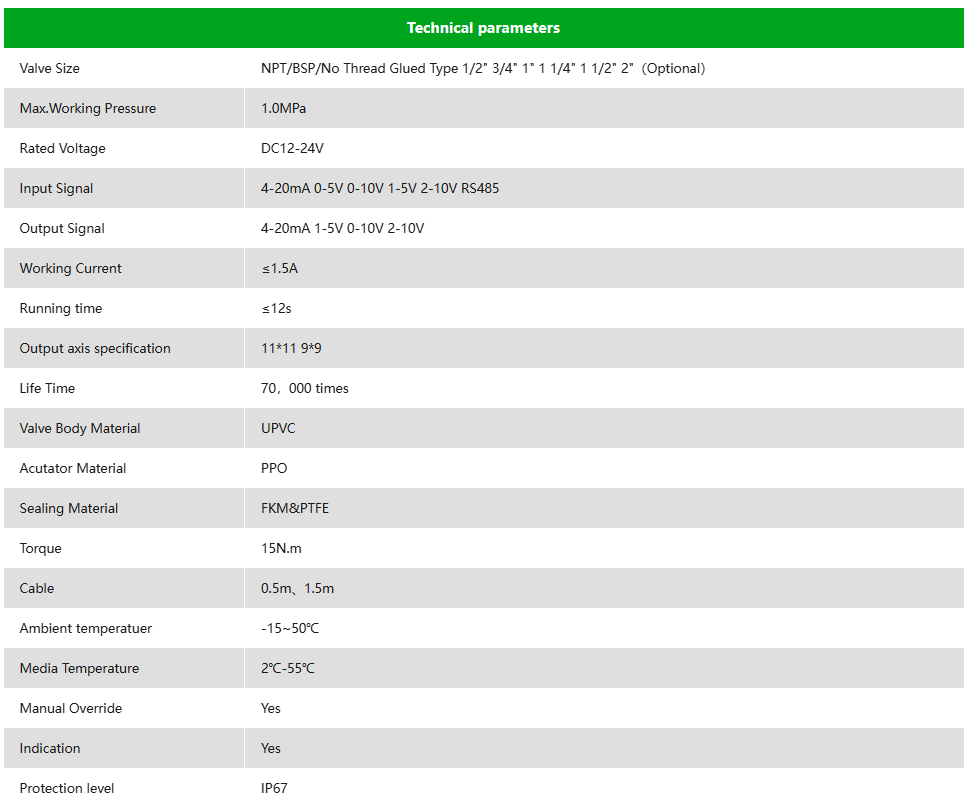

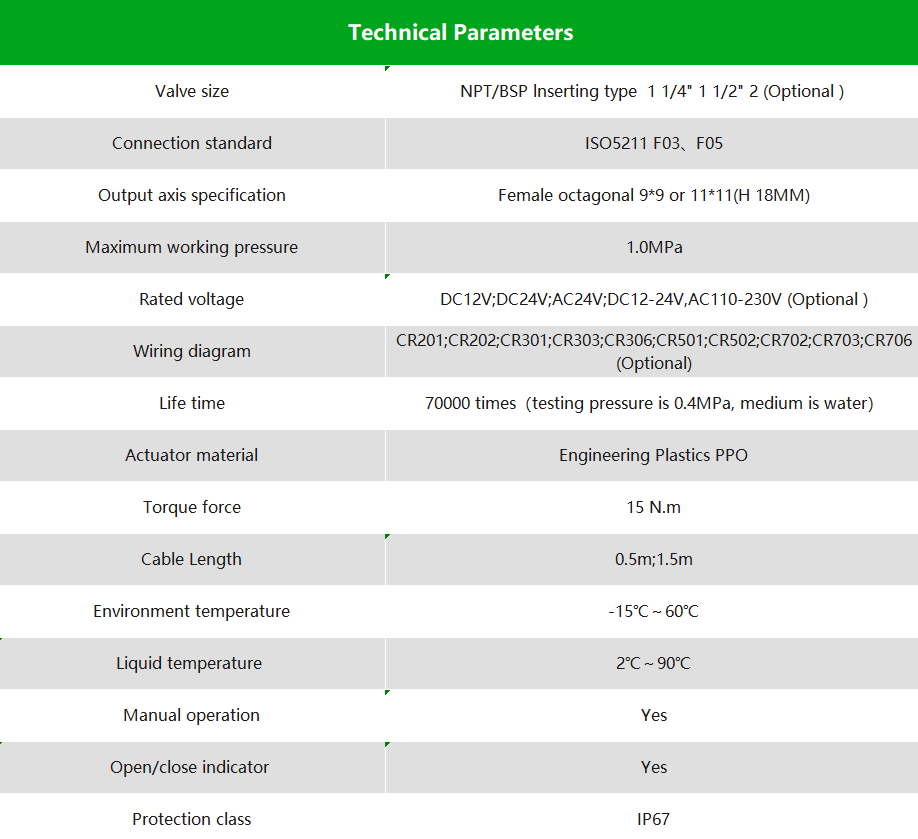

1. Analog Iinput Signal:4-20mA 、0-5V 、0-10V,Output Signal :4-20mA

2. Beautiful appearance, compact structure, high precision, large output torque, service life is not less than 70,000 times.

3. The actuator and valve can be assembled from multiple angles, which is convenient for users to allocate space.

4. Ball valve adopts floating soft seal structure, no drip leakage, suitable for heavy dirt and long-term no action occasions.

5. Protection grade IP67, can be used in relatively humid environment.

Online Service

Tel:86-576-84297288 81100233

Email: tonhe@china-tonhe.com

Fax: 86-576-81100232

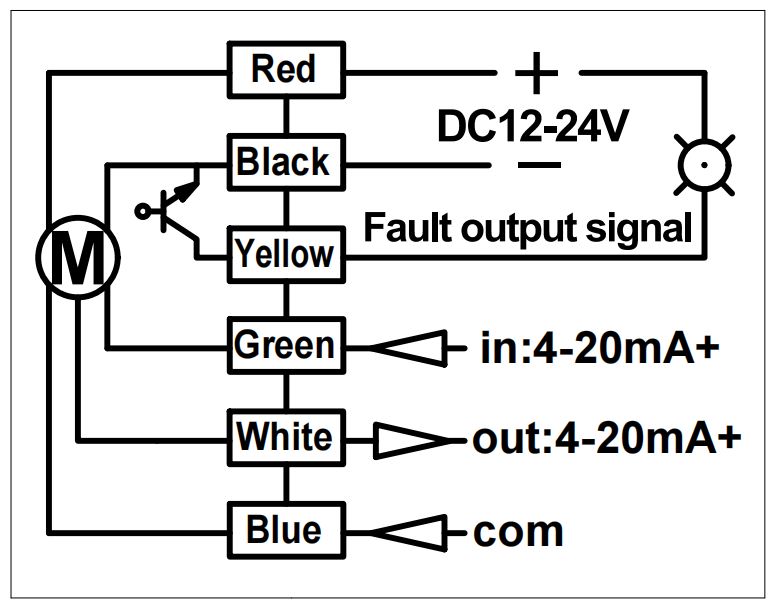

The wiring diagram

1.RD(red wire) connects positive pole,BK(black wire) connects negative pole

GR(green wire) connects positve of input signal,BL(blue wire) connects negative of output signal

2.Input 20mA, actuator would turn clockwise and valve opens, valve would stop automatically when opens to its location.

Input 4mA, actuator would turn counter clockwise and valve closes, valve would stop automatically when closes to its location.

3.WT & BK(white and black wires) are output 4-20mA

4.YW(yellow wire) is fault output signal

5.Voltage: DC12-24V

6.Over working voltage is not allowed


4-20mA

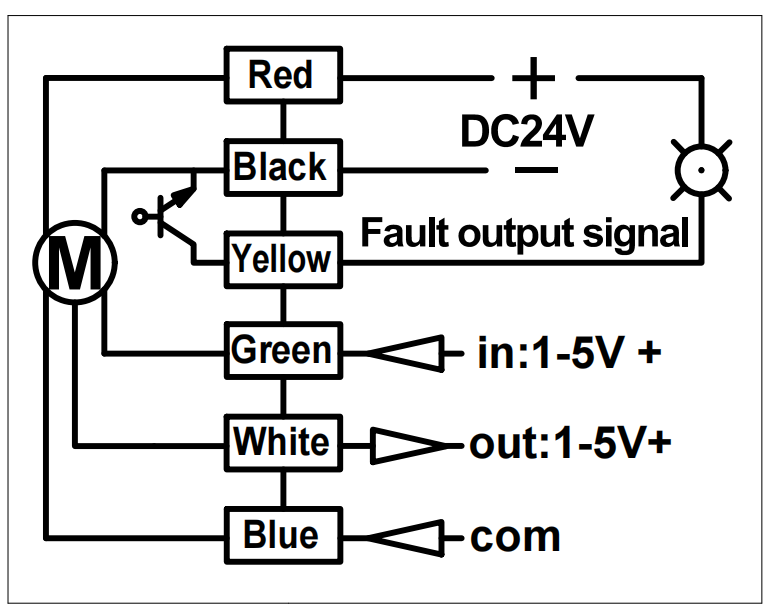

1.RD(red wire) connects positive pole,BK(black wire) connects negative pole

GR(green wire) connects positve of input signal,BL(blue wire) connects negative of output signal

2.Input 5V, actuator would turn clockwise and valve opens, valve would stop automatically when opens to its location.

Input 0V, actuator would turn counter clockwise and valve closes, valve would stop automatically when closes to its location.

3.WT & BK(white and black wires) are output 4-20mA

4.YW(yellow wire) is fault output signal

5.Voltage: DC12-24V

6.Over working voltage is not allowed

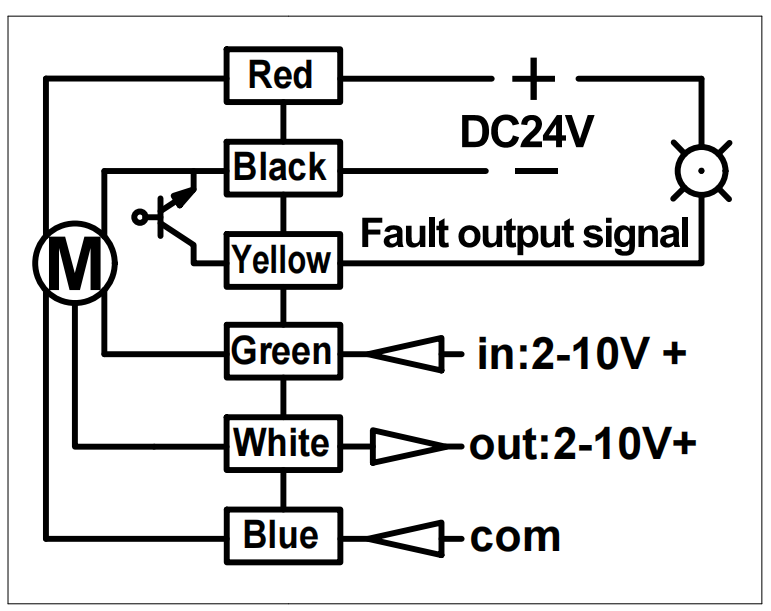

1.RD(red wire) connects positive pole,BK(black wire) connects negative pole

GR(green wire) connects positve of input signal,BL(blue wire) connects negative of output signal

2.Input 10V, actuator would turn clockwise and valve opens, valve would stop automatically when opens to its location.

Input 0V, actuator would turn counter clockwise and valve closes, valve would stop automatically when closes to its location.

3.WT & BK(white and black wires) are output 4-20mA

4.YW(yellow wire) is fault output signal

5.Voltage: DC12-24V

6.Over working voltage is not allowed
