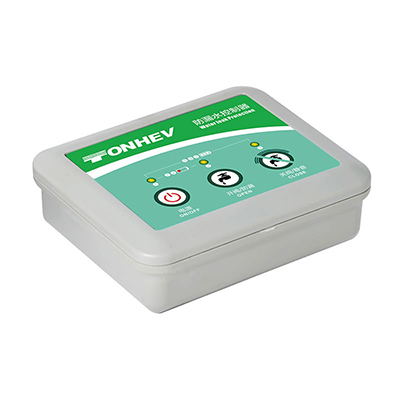

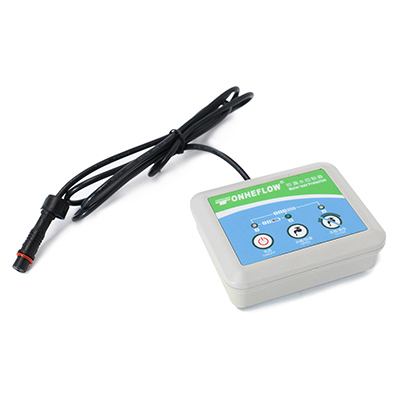

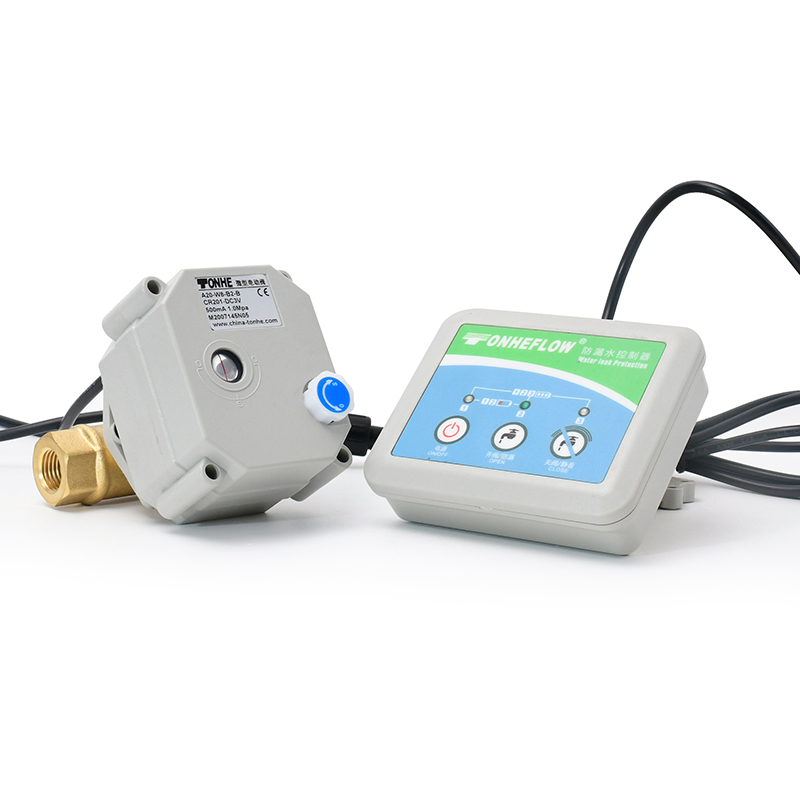

DN8 Brass Water Leakage Detector Sensor Alarm Water Detector With Manual Override

1. Beautiful appearance, compact structure, high precision, large output torque, service life is not less than 70,000 times.

2. The actuator and valve can be assembled from multiple angles, which is convenient for users to allocate space.

3. Ball valve adopts floating soft seal structure, no drip leakage, suitable for heavy dirt and long-term no action occasions.

4. Protection grade IP67, can be used in relatively humid environment.

Online Service

Tel:86-576-84297288 81100233

Email: tonhe@china-tonhe.com

Fax: 86-576-81100232




The wiring diagram

1.RD connect with positive, the BK connect with negative, the valve closed, the actuator automatically power off after in place, the valve remains fuly closed position.

2.BK connect with positive, the RD connect with negative, the valve open, the actuator automatically power off after in place,the valve remains fully open position.

Suitable Working Voltage: DC3V

Exceeding the working voltage is forbidden
